Glass Pyramid Skylight - PYG & PYGXL

Default Value

$0.00

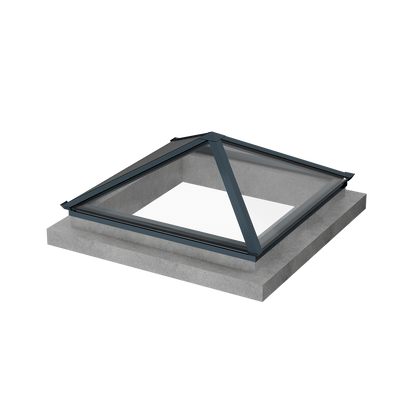

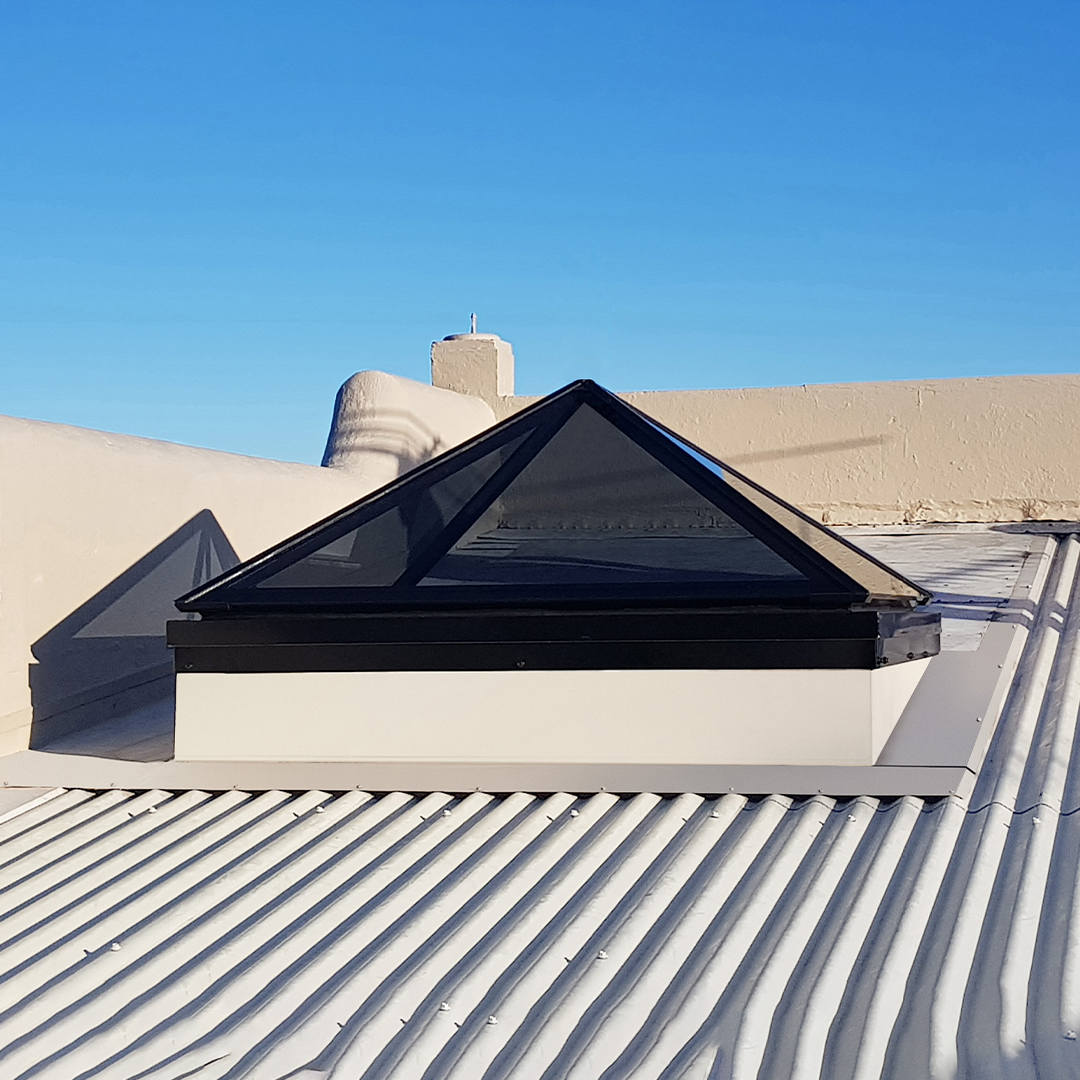

The Skyspan Glass Pyramid Skylight delivers striking architectural form combined with high-performance glazing and proven weather protection. Its faceted geometry creates a strong visual focal point while efficiently drawing natural light deep into interior spaces.

Available in standard (GPY) and large-format (GPYXL) configurations, the system is engineered for Australian roof conditions and manufactured from durable aluminium framing with custom heat-strengthened laminated glass. Each unit is designed to comply with AS4285 and AS1288, ensuring structural integrity, safety, and long-term performance.

Ideal for residential and commercial applications where daylight, geometry, and architectural presence are equally important, the GPY range balances aesthetics with compliance-driven design.

Glazing Options

Tint Options

Custom tinting options and Ceramic Frit Patterns also available. Above images are for illustrative purposes only—actual tint colors may vary due to lighting and screen display.

Energy rating

Glazing	U-Value	SHGC
Centre of Glass Values:
Single Glazed (Clear)	3.6	0.63
Double Glazed (Clear)	1.3	0.27
Double Glazed (Grey Tint)	1.3	0.26
Double Glazed (White Translucent)	1.3	0.24

On a project specific basis, higher performance energy ratings up to SHGC 0.18 are available for maximum width of 2,000mm & maximum length of 3,500mm

Frame Construction	Welded aluminium frame with integrated thermal break
Trafficable Use	Trafficable for cleaning and maintenance (AS1288 Section 6)
Roof Pitch Suitability	3° – 60° (5° minimum recommended for water runoff)
Flashing Material	0.75 mm Zincalume® (standard) or Stainless Steel / Colorbond® Ultra
Finish Options	Powder coated to any Colorbond®, Dulux or Interpon colour
BAL Rating	BAL-29 compliant (non-combustible aluminium, steel and glass)
Compliance Standards	AS 4285:2019 – Rooflights AS 1288:2021 – Glass in Buildings AS 3959:2018 – Bushfire Construction AS/NZS 1170 Series – Structural Design Actions
Warranty	7 Years (manufacturing defects)
Made In	Australia

Please enter a product enquiry above to request technical drawings.

FAQs

Please read our FAQs page to find out more.

What is the difference between GPY and GPYXL?

The GPY is the standard pyramid skylight range, suitable for most residential and light commercial applications.

The GPYXL is a large-format pyramid skylight, designed for oversized openings and higher structural demands, and is typically specified for commercial or architectural projects.

Is the Glass Pyramid Skylight available as supply only?

- GPY can be supplied as supply only or supply and install
- GPYXL is available as supply and install only

Due to the size, weight, and installation complexity of GPYXL units, Skyspan undertakes installation to ensure compliance, performance, and warranty integrity.

Can GPY skylights be manufactured in custom sizes?

Yes they can be custom-manufactured to suit project-specific dimensions, roof geometry, and glazing requirements.

Larger formats and unusual proportions may influence glass specification, structural detailing, and installation methodology, which will be assessed during the design stage.

Are GPY skylights suitable for bushfire-prone areas?

Yes. Glass Pyramid Skylights are manufactured from non-combustible materials, including aluminium and laminated glass, and can be specified to meet bushfire requirements subject to roof pitch, glazing selection, and project conditions.

Where required, Skyspan can assist with confirming BAL suitability during the specification process.

How does a pyramid skylight perform compared to a flat glass skylight?

A pyramid skylight introduces multi-directional daylight, capturing light throughout the day rather than relying on a single plane of glazing.

This makes GPY skylights particularly effective in spaces where light distribution and visual impact are equally important, such as stairwells, atriums, and feature spaces.
