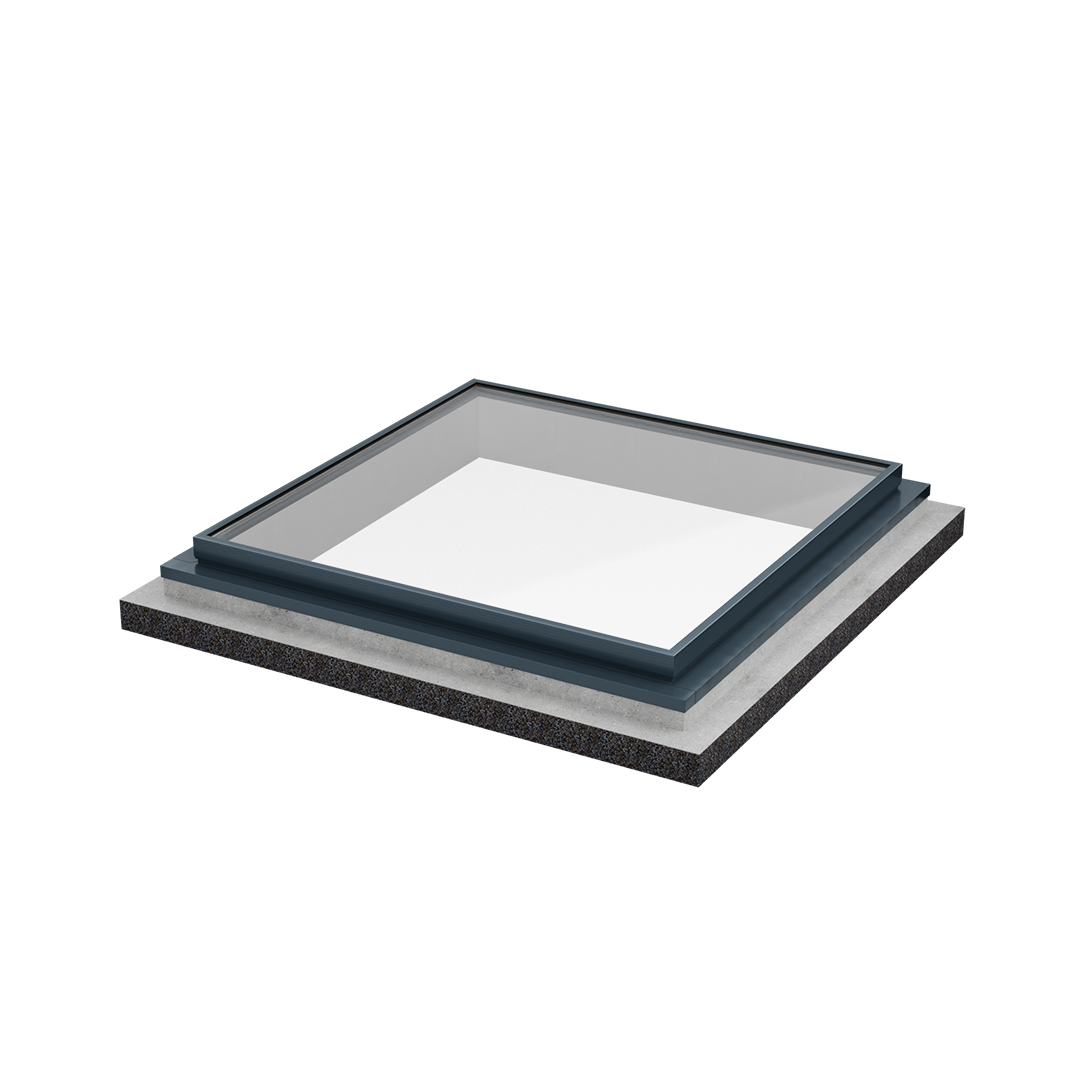

Large Glass Skylight GXL|1500x5000mm|Hob Mount (Concrete)|Double
SKYSPAN 1500x5000mm FIXED DOUBLE GLAZED THERMALLY BROKEN CUSTOM GLASS SKYLIGHT
C/W A SINGLE IGU TO AS1288 MAKE UP OF 8mm CLEAR TOUGHENED MONOLITHIC LOW E #2 + 12mm ARGON + 13.52mm CLEAR HEAT-STRENGTHENED LAMINATE
ALUMINUM WELDED FRAME & .75mm ZINCALUME APRON FLASHING TO SUIT HOB MOUNT (CONCRETE)
(STRUCTURAL WATERPROOFED/ FLASHED HOB BY OTHERS - NOT BY SKYSPAN)
NOTE: 5° PITCH IS SKYSPAN'S RECOMMENDATIONS FOR THE PITCH OF THE HOB/ SKYLIGHT TO ALLOW FOR WATER RUNOFF
C/W A SINGLE IGU TO AS1288 MAKE UP OF 8mm CLEAR TOUGHENED MONOLITHIC LOW E #2 + 12mm ARGON + 13.52mm CLEAR HEAT-STRENGTHENED LAMINATE
ALUMINUM WELDED FRAME & .75mm ZINCALUME APRON FLASHING TO SUIT HOB MOUNT (CONCRETE)
(STRUCTURAL WATERPROOFED/ FLASHED HOB BY OTHERS - NOT BY SKYSPAN)
NOTE: 5° PITCH IS SKYSPAN'S RECOMMENDATIONS FOR THE PITCH OF THE HOB/ SKYLIGHT TO ALLOW FOR WATER RUNOFF
Pairs well with
Large Glass Skylight GXL|1500x5000mm|Hob Mount (Concrete)|Double
$15,455.00
