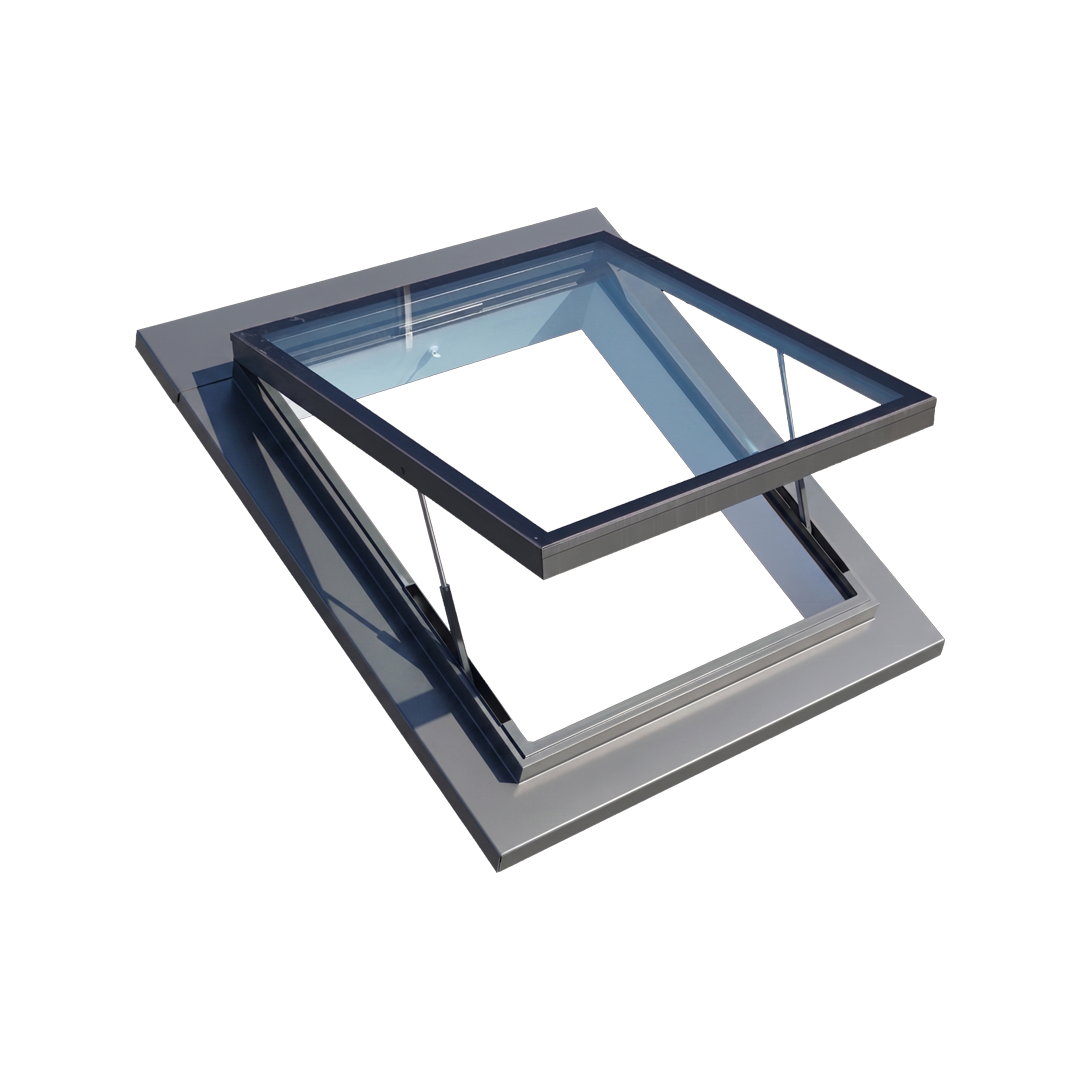

Large Opening Glass Skylight - GXLW
Pairs well with
7-Year Warranty
Available For:
Large Opening Glass Skylight - GXLW
The Skyspan GXLW is a custom electric opening double glazed glass Skylight designed to provide both natural light and ventilation. The GXW is ideal for residential and commercial projects requiring an operable architectural Skylight solution.
Features:
- Double glazed safety glass
- Electric opening operation
- Dual linear actuators
- Wireless remote or wall switch control
- Custom made to suit project requirements
- Welded aluminium frame
Glazing
Tint Options
Custom tinting options and Ceramic Frit Patterns also available. Above images are for illustrative purposes only—actual tint colors may vary due to lighting and screen display.
| Glazing | U-Value | SHGC |
|---|---|---|
| Double Glazed | 1.3 | 0.27 |
Values are centre-of-glass for standard clear glass; other glazing options available.
| Hatch Type | Electric opening glass roof access hatch |
| Operation | Electric actuator system, operated via control switch |
| Glazing | High-performance double-glazed safety glass |
| Frame Construction | Powder-coated aluminium frame and lid |
| Trafficable Use | Trafficable for cleaning and maintenance (closed position only) |
| Structural Performance | Assessed for 2 kPa uniform wind action and 1.1 kN live load (AS/NZS 1170.1) |
| Weather Performance | Designed as a weathertight glass roof hatch for exposed rooftop applications |
| Mounting | Designed for concrete, steel or timber hobs (project-specific) |
| Finish Options | Powder coated to any Colorbond®, Dulux or Interpon colour |
| Compliance Standards | AS 4285:2019 – Rooflights AS 1288:2021 – Glass in Buildings AS/NZS 1170.1 – Structural Design Actions |
| Warranty | 7 Years on unit, 3 Years on electrical components, 1 Year on battery |
| Made In | Australia |
These drawings are available to registered specifiers. Create a specifier account or log in to access them. All others can submit a product enquiry above.
